IWD-12 Crimping Tool – Professional for Closed Barrel Terminals

🔧 General Description

The IWD-12 is a high-precision crimping tool developed for crimping closed barrel terminals with size 12 (12 AWG) contact.

Its ratchet system ensures consistent, firm, and standardized crimps — ideal for electrical applications requiring safety, durability, and vibration resistance.

⚙️ Applications

Suitable for use in:

Automotive and agricultural wiring harnesses

Heavy machinery and off-road equipment

Trucks, buses, and utility vehicles

Construction and industrial equipment

Prototypes and electrical maintenance in environments subject to vibration

🧰 Technical Characteristics

Compatible with size 12 closed barrel terminals

Treated steel structure, ensuring long service life and resistance to deformation

Ratchet mechanism that ensures uniform pressure in each crimp

Anatomical rubberized handle for better grip and comfort

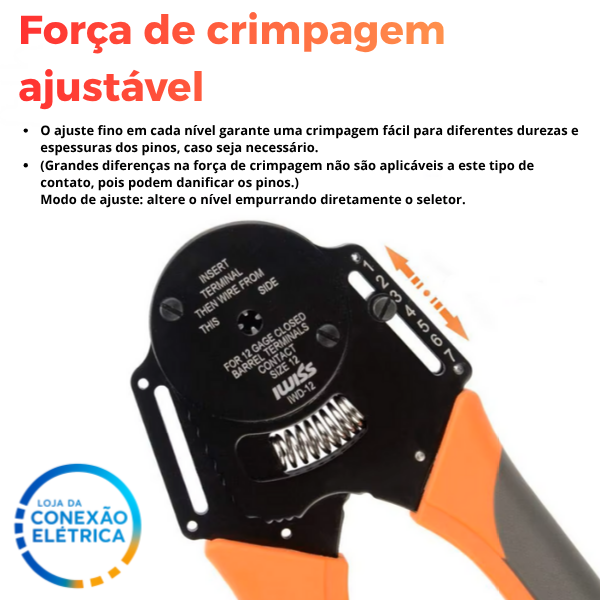

Fine pressure adjustment with numbered indexing (1 to 7)

Spring return and automatic release after complete crimping

📘 How to Use

Select the correct terminal according to the cable type and gauge (12 AWG).

Carefully strip the cable without damaging the wires.

Insert the terminal into the crimping tool housing as indicated (“INSERT TERMINAL THIS SIDE”).

Insert the wire to the bottom of the terminal.

Press the crimping tool until the ratchet cycle is complete (the tool releases automatically).

Check the crimp, ensuring that the contact is firm and without deformation.

✅ Advantages

Ensures firm and durable electrical connections

Reduces the risk of poor contact and overheating

Ideal for mass production and technical maintenance

Requires no excessive force during use

Essential tool for electrical harness professionals and automotive electricians

📦 Package Contents

1 unit of IWD-12 crimping tool

Illustrated user manual
